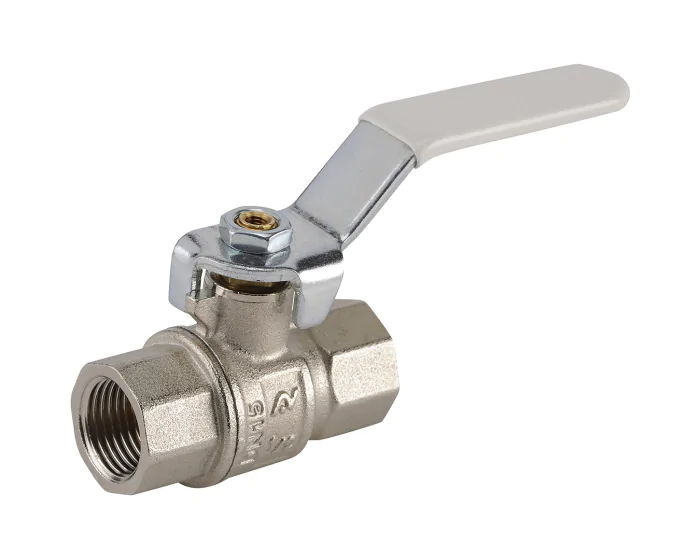

Discover the oxygen degreased brass industrial series full bore ball valve with long thread and large flat bearing for shutting off oxygen, argon or nitrogen systems (not suitable for acetylene).
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| DN metric | 8/13 |
| Brand | AIRAGA |
| Direct mounting | Yes |
| Thread standard | ISO 228-1 |
| Stem sealing material | PTFE Gland packing + EPDM O-ring |
| Type of coating | Nickel-plated |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Brass CW614N |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 46.5 |
| Fluid | Oxygen / Argon / Nitrogen |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 60 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Chrome-plated brass CW617N |
| TS max (°C) | 120 |
| TS min (°C) | -20 |
| Warranty period | 2 years |
| Handle material | Carbon steel |
| Handle type | White lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 1/4'' | 520002 | S1009929 |
€5.96
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3/8'' | 520003 | S1009930 |
€5.96
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1/2'' | 520004 | S1009931 |
€9.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3/4'' | 520005 | S1009932 |
€12.86
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1'' | 520006 | S1009933 |
€19.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1''1/4 | 520007 | S1009934 |
€30.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1''1/2 | 520008 | S1009935 |
€46.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2'' | 520009 | S1009936 |
€69.73
(excl. btw)
|
add to cart |
